Medium Intensity Airfield Lighting

Suitable for non-instrument runways or non-precision approach runways, our range of medium intensity airfield lighting has a wide range of potential applications depending on the requirements of your airfield.

Correct use of medium intensity lighting will form a vital part of any airfield lighting system, this is something our experienced team of AGL specialists will be able to help you with. Comprehensive discussions will enable a bespoke approach to your project and ensure you receive a system which meets your precise requirements. Our aftercare service also means you’ll be able to move forward in complete confidence once the project is complete.

View our range of medium intensity airfield lighting below or contact our team to discuss your requirements.

Quantas airplane

LED Medium Intensity Lighting Range

Threshold Lighting

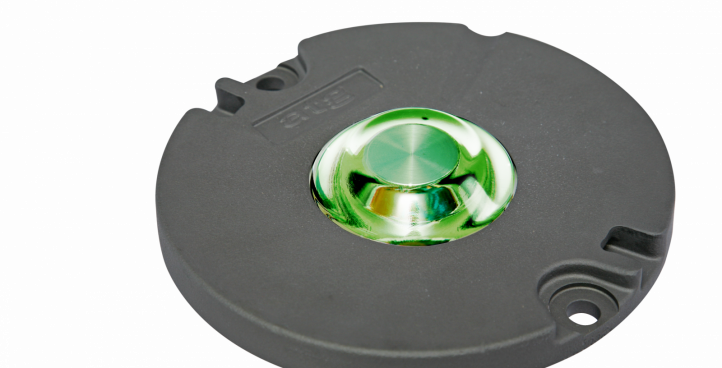

IR951L

MI Inset LED unidirectional Threshold

Intermediate Holding Position / Clearance Bar

IR962CBL

MI Elevated Omni Directional LED Clearance Bar

Outer Threshold Lighting

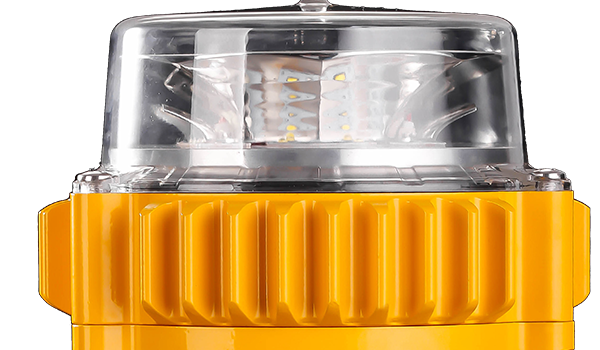

IR952L

MI Elevated LED Outer Threshold

IR953L

MI Inset LED Omni-directional Outer threshold

Runway Edge Lighting

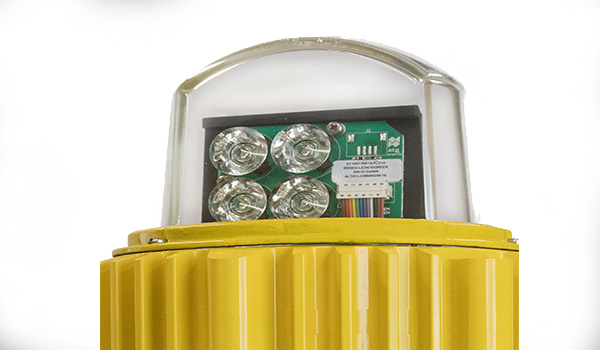

IR958L

MI Elevated LED Runway Edge

IR959L

MI Inset LED omni directional Runway Edge

IR969L

MI Inset LED bi-directional runway edge

Runway End Lighting

IR955L

MI Inset LED Runway End

Tungsten Halogen Medium Intensity Lighting Range

Outer Threshold Lighting

ZA952

MI Elevated Omni Directional Outer Threshold

ZA953

MI Inset omni directional outer threshold

Threshold / End Lighting

IR956L

MI Elevated LED Threshold and Runway End

IR957L

MI Inset LED Threshold and Runway End

Runway Edge Lighting

ZA958

MI Elevated Omni Directional Runway Edge

ZA959

MI Inset Omni Directional Runway Edge

ZA969

MI Inset bi-directional Runway Edge

Runway End Lighting

ZA955

MI Inset Runway End

Threshold / End Lighting

ZA957

MI Inset Threshold and Runway End

Medium Intensity Lighting Applications



Runway edge lighting

We offer medium intensity omni-directional and bi-directional runway edge lighting. These lights are positioned along or just beyond the edge of the runway.

Omni-directional runway lights are white subject to specific exceptions and can be either inset or elevated.

Bi-directional runway lights, on the other hand, is inset into the pavement. There is no circular guidance aspect to this type of lighting, meaning they can only be seen when in-line with the runway.

Each airport has differing requirements for their runway edge lighting – a discussion of each type will enable you to make the best decision possible for your needs.

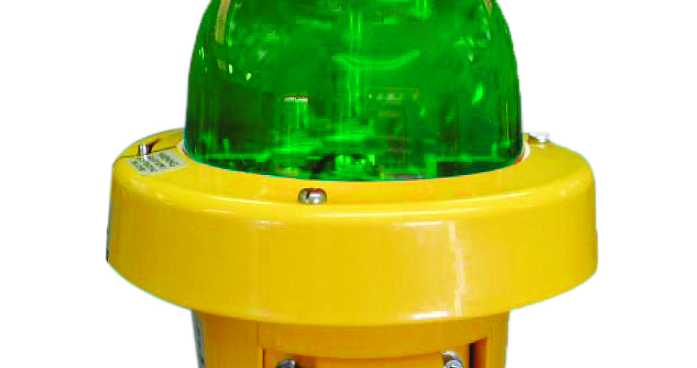

Threshold lights

These lights are installed in a line along the landing threshold at the approach end of the runway and are only visible on approach. Threshold lights are green and can either be elevated or inset fixtures.

Runway end lights

Installed along the end of the runway available in-use, these red lights mark the end of the runway and can typically only be seen from either end of it. Runway end lights are typically powered from the runway edge circuit and can either be elevated or inset fittings.

Runway threshold/end lights

These lights combine runway end lights and threshold lights into a single fixture. They’re green in one direction and red in other and can make your light installation much more efficient.

Intermediate holding position

Provided at airports where there are intersecting taxiways without any taxiway guidance system. Holding positions, also referred to as clearance bars, may be established in order to protect a priority taxiway route ahead. For medium intensity requirements the fixtures are generally installed at the edge of the taxiway, on both sides of the holding position.

MALSR

A MALSR approach lighting system helps pilots to line up their aircraft with the centre line of the runway. The full name for the MALSR lighting system is “Medium Intensity Approach Light System with Runway Alignment Indicator Lights”, but they are often known simply as MALSR lights.

MALSR approach lights typically include up to 63 static luminaires that indicate a reference plane for approaching aircraft, with a row of threshold lights to mark the start of the landing runway. A further line of up to eight strobes flashes in sequence towards the runway threshold, highlighting the direction and alignment of the final approach.

This strobing sequence is the Runway Alignment Indicator Lights, or RAIL, and without them, the threshold lighting array is known as MALS lights, without the R.
